G03 High Density Quartz Crucible With Funnel Large Size Industry
Producing
Application of density quartz crucible:
Industrial alumina ceramic crucible is used for testing laboratory
and a variety of industrial analysis.
Alumina ceramic crucible
include: arc alumina crucible, square alumina crucible, rectangle
alumina ceramic crucible,
column ceramic crucible.
Application of density quartz crucible:
1.high purity Al2O3 >99%.
2.Superior refractoriness.
3.High mechanical strength.
4.Long life time.
5. High chemical etching resistance.
6. High temperature up to 1800°C
7. Resistant to sudden cold and hot, un-explosive.
8. High density of slip casting.
9. Various kinds of shape.
Alumina ceramic crucible feature
1. Corundum crucible is suitable for melting samples with anhydrous
Na2CO3 and other weak alkaline substances as flux, but not suitable
for melting samples with Na2O2, NaOH and other strong alkaline
substances and acidic substances as flux (such as K2S2O7 and so on)
2. Resistance to high temperature, acid and alkali, cold and hot,
chemical corrosion
3. The color is white or beige
Technical parameter of alumina ceramic crucible:
| Item | | Unit | 95 Al2O3 | 96 Al2O3 | 99 Al2O3 |
| Physical Characteristics | Heat resistance | 0C | 1500 | 1550 | 1800 |
| Bulk density | g/cm3 | 3.6 | 3.6 | 3.9 |
| Water absorption | % | 0 | 0 | 0 |
Mechanical Characteristics | Flexural strength | Mpa | 320 | 340 | 360 |
| Hardness vickers | Gpa | 12.2 | 13.5 | 15.6 |
| Elastic modulus | Gpa | 280 | 320 | 370 |
| Poisson’s ratio | | 0.22 | 0.23 | 0.23 |
| Thermal Characteristics | Linear expansion coefficient | (20-5000C) 10-6/0C | 7.1 | 7.2 | 8 |
| Thermal conductivity | w/(m.k) | 16 | 24 | 32 |
| Specific Heat | *10-3J/(kg*K) | 0.78 | 0.78 | 0.9 |
| Electrical Characteristics | Dielectric constant (1MHZ) | - | 9 | 9.4 | 9.9 |
| Dielectric loss angle | *10-4 | 15 | 5 | 1 |
| Dielectric strength | *106V/m | 12 | 15 | 15 |
| Process range (mm) |
| Outside Diameter | 1---300 |
| Inside Diameter | 0.5---300 |
| Length | 0.5---1200 |
Standard models of SUPER quartz crucible:
| Model | Outer diameter | Inner diameter | Total height |
| C01 | 145mm | 83mm | 293mm |
| C02 | 335mm | 265mm | 300mm |

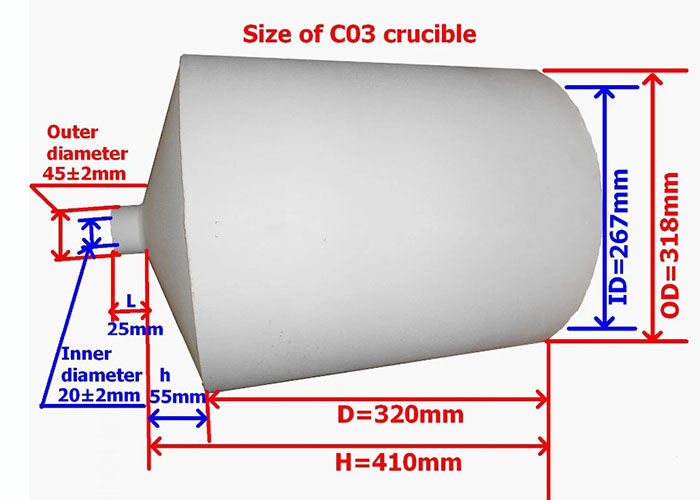

| C03 | 318mm | 267mm | 410mm |
| C04 | 510mm | 450mm | 610mm |
