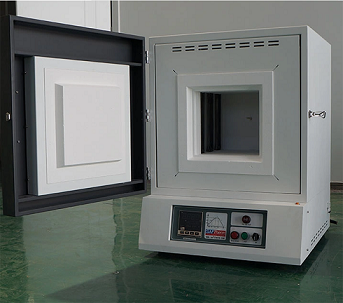

High Temperature Electric Lab 1400 C Muffle Furnace
Electric Lab 1400 C Muffle Furnace Overview:
The 1400 Degree High Temperature Electric Lab Muffle Furnace for
Laboratory is a front-loading box-type oven or kiln for
high-temperature applications such as fusing glass, creating enamel
coatings, ceramics and soldering and brazing articles. the electric
furnace can also be used in many research facilities, for example
by chemists in order to determine what proportion of a sample is
non-combustible and non-volatile (i.e., ash). Some digital
controllers allow RS232 interface and permit the operator to
program up to 126[3] segments, such as ramping, soaking, sintering,
and more. Also, advances in materials for heating elements, such as
molybdenum disilicide, can now produce working temperatures up to
1,800 degrees Celsius (3,272 degrees Fahrenheit), which facilitate
more sophisticated metallurgical applications
Electric Lab 1400 C Muffle Furnace Application:
Melting Muffle furnace mainly used in chemical analysis, physical
decomposition and synthesis, super hard
materials (such as ceramic), Rare and precious metal smelting and
purification, metal heat treatment of sintering process research
and other scientific experiments. Universities and colleges,
scientific research institutes, medical and health, petroleum
chemical industry, mining enterprise, quality and technology
supervision agencies, and other units laboratory, laboratory are
the use of such equipment.
1. Gravimetric analysis;
2. Sintering;
3. Quantitative analysis;
4. Heat treating;
5. Glass preparation;
Technical Data of Electric Lab 1400 C Muffle Furnace :
| Items | Specification |
| Product | SP-1400B-12L high temperature lab muffle furnace |
| Useful chamber size | 200*200*300mm(12L W * H* D) |
| Max Temp | 1400℃ ( < 3 hrs) |
| Working Temp | 100-1300℃ (adjustable, for long time ) |
| Temp accuracy | ±1 ℃ |
| Heating rate | 1-20℃/min (adjustable,advise less than 15℃/min) |
| Heating Element | Resistance wire |
| Furnace liner | Light durable ceramic fiber plate |
| Rated Power: | 7KW |
| Furnace shell | Double shells with fan cooling |
| Temp. measurement | By S type thermocouple |
| Temp. Control | 30 segments programmable and PID auto control |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Furnace surface temperature | ≤55.C |
| Working Voltage | AC,1-phase ,220V ,50/ 60HZ |
| Optional part | Can be connected with computer if customer need |
| Freebies | 1.oven glove 1 set ; 2. Pliers 1pc |
Stanard models of SUPER MUFFLE FURNACE:
| Model | Max. temp. | Chamber Size | Working voltage &power |
| SP-1400B-1L | 1400℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V,1.3KW |
| SP-1400B-3.4L | 1400℃ | 150x150x150mm(6”x6”x6”) | AC,1-phase,220V,2.5KW |
| SP-1400B-4.5L | 1400℃ | 150x150x200mm(6”x6”x8”) | AC,1-phase,220V.3.8KW |
| SP-1400B-8L | 1400℃ | 200x200x200mm(8”x8”x8”) | AC,1-phase,220V,5.5KW |
| SP-1400B-12L | 1400℃ | 200x200x300mm(8”x8”x12”) | AC,1-phase,220V,7KW |
| SP-1400B-18.8L | 1400℃ | 250x250x300mm(10”x10”x12”) | AC,1-phase,220V,8.5KW |
| SP-1400B-36L | 1400℃ | 300x300x400mm(12”x12”x16”) | AC,3-phase,380V,12KW |
| SP-1400B-49L | 1400℃ | 350x350x400mm(14”x14”x16”) | AC,3-phase,380V,15KW |
| SP-1400B-64L | 1400℃ | 400x400x400mm(16”x16”x16”) | AC,3-phase,380V,18KW |
| SP-1400B-125L | 1400℃ | 500x500x500mm(20”x20”x20”) | AC,3-phase,380V,24KW |
| SP-1400B-216L | 1400℃ | 600x600x600mm(24”x24”x24”) | AC,3-phase,380V,30KW |
Standard Packing for lab muffle furnace:
1.The muffle lab furnace was warped with enrivonmental plastic
stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the
case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment
marks
Delivery Time: 30 working days against receiving advanced payment
Port: Shanghai/Qingdao
